Flow meters

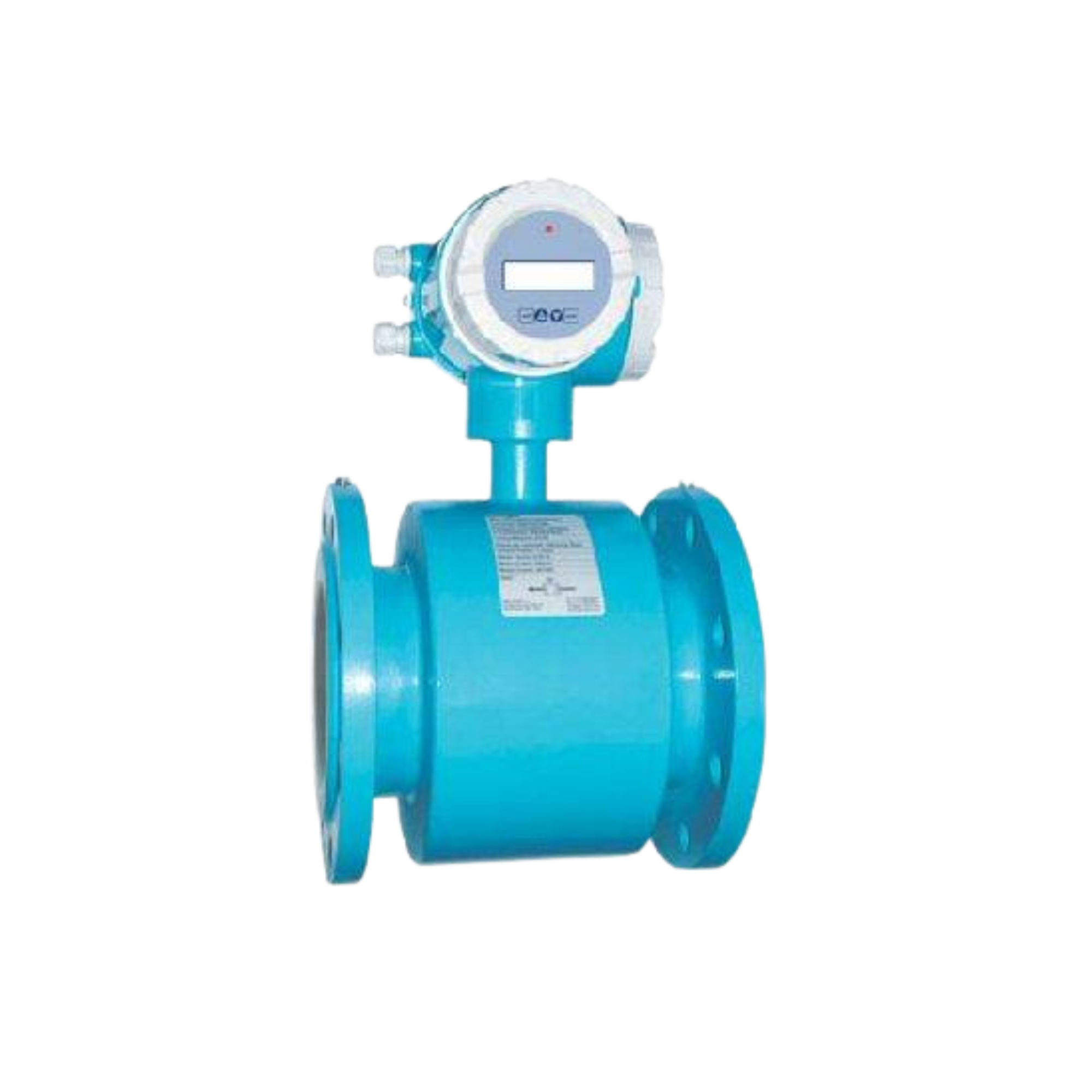

Magnetic inductive flow meters

An electromagnetic flow meter consists of an electronic transmitter and a receiver located on either side of a tubular chamber, the measuring principle uses Faraday's law.

The flow meters are used to measure the volumetric flow rate of conductive liquids in closed pipes. The flow meters are available with the option of several different output signals. Measurement is independent of density, viscosity, temperature, pressure and conductivity of the measured fluid. There are no moving parts in the measuring tube and therefore no additional pressure loss.

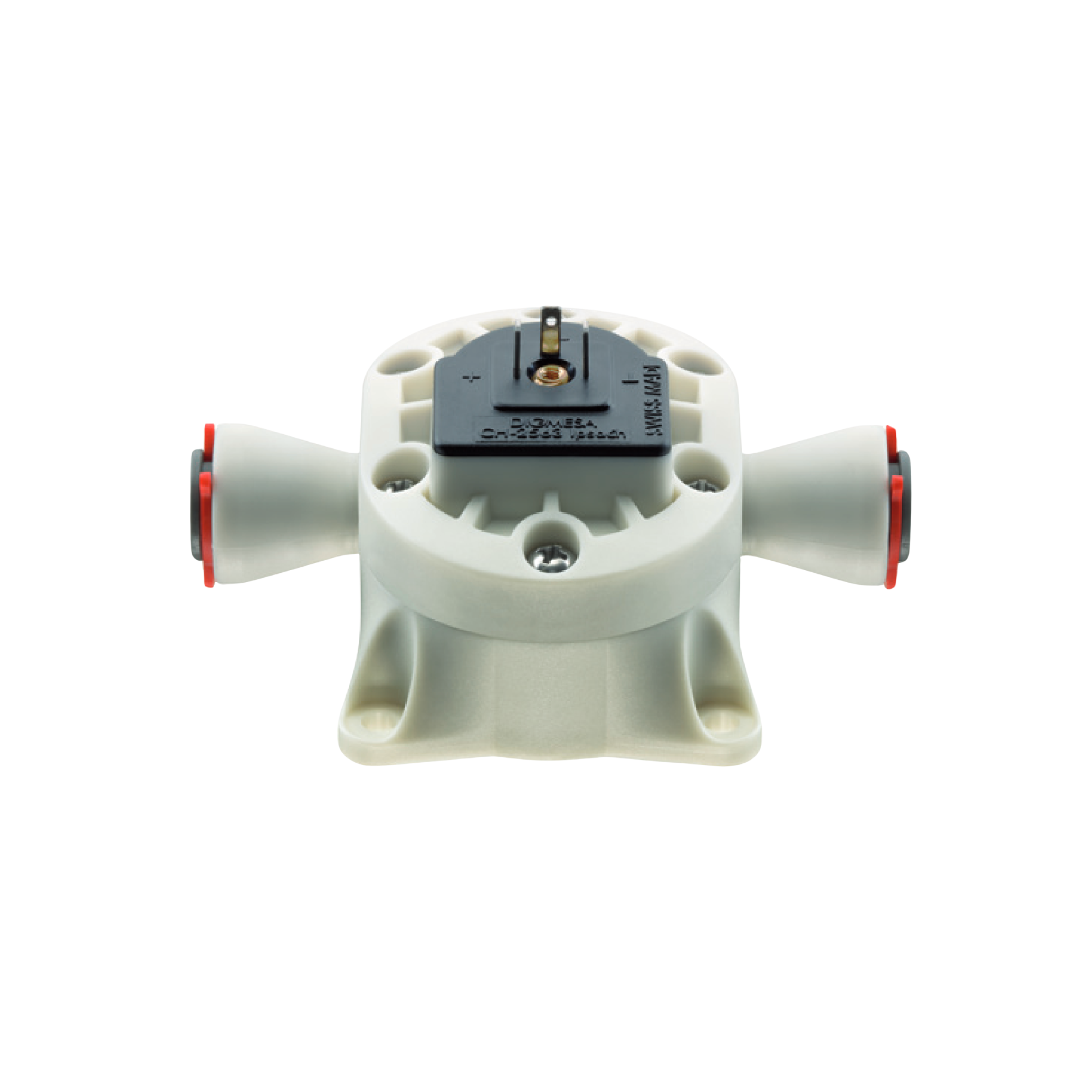

Turbine wheel flow meters

For flow measurement for less demanding applications, we offer different types of turbine wheel flowmeters. These flow meters are available in arnite, ryton, PVC or PVDF.

For flow measurement from 0 - 30 l/min use closed flow meters with high accuracy. For flow measurement in larger pipes Ø 15 - 225 mm, use a ‘Paddle Wheel’ type flow sensor mounted in a T-piece in the centre of the pipe. A Flow 40 instrument is offered as a measuring instrument, which in addition to displaying the current flow, has integrated batch controls and alarms.

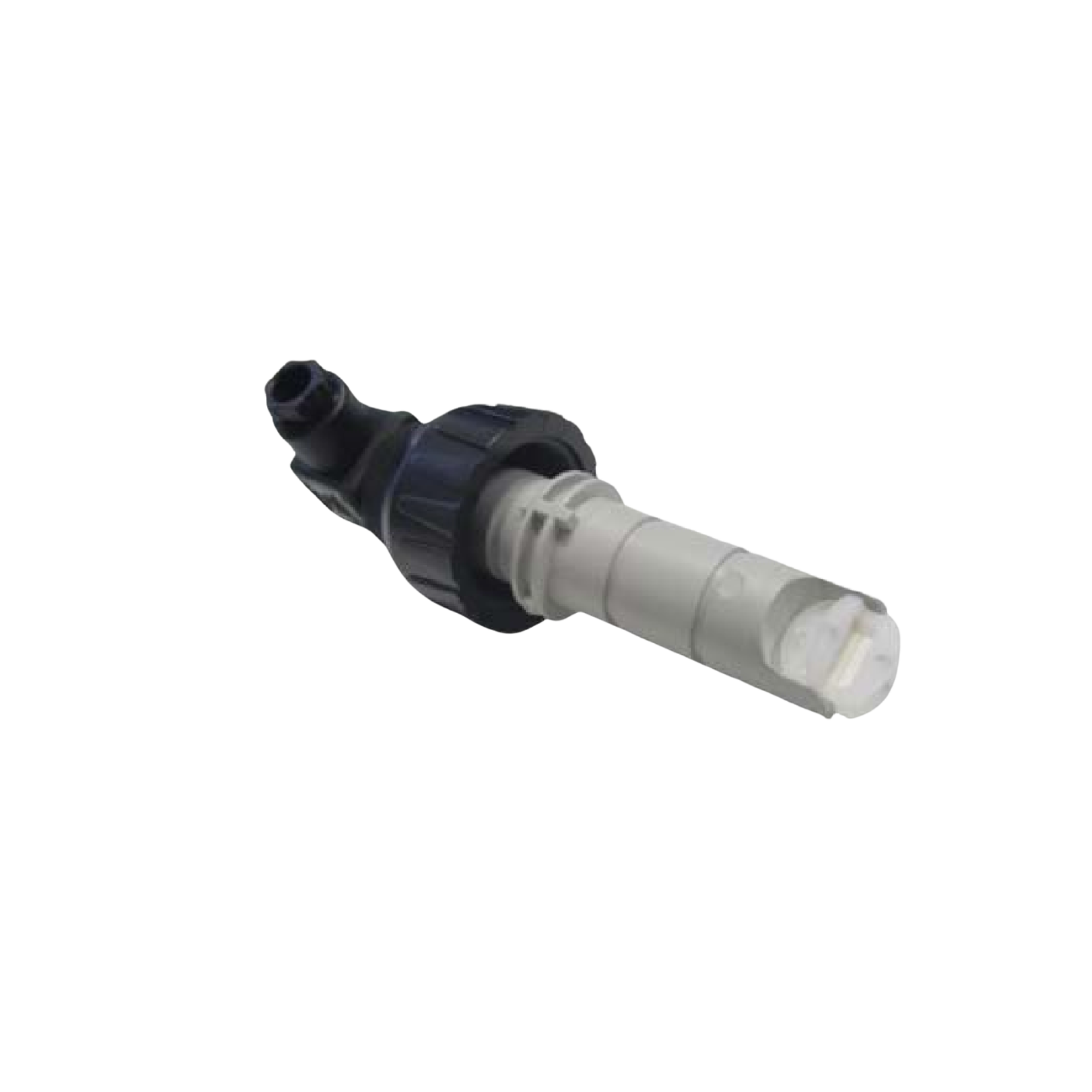

Paddle flow meter

An affordable solution for flow measurement of liquids in industry is to use a paddle wheel flow sensor.

The sensor has an open paddle wheel that, with the help of special fittings, is placed right in the centre of the pipeline. The measuring range of the sensor is 0.15 - 8 m/second as velocity in the pipe.

The sensor emits pulses that are collected by e.g. a flow meter type FX 40.

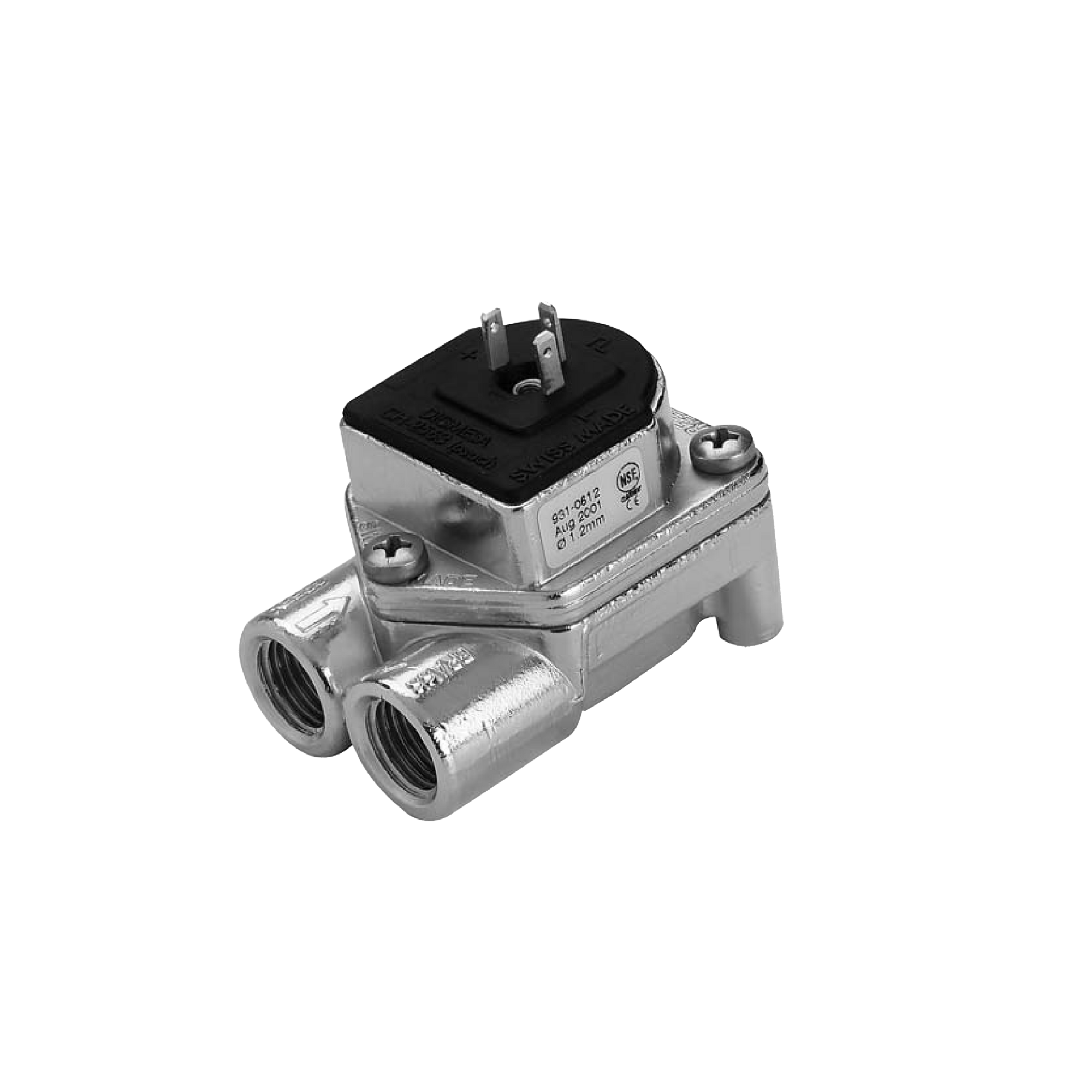

Oval gear flow meters

For measuring aggressive liquids with viscosity, oval wheel meters can be used

Viscosity range 5 - 8000 cS
Open collector NPN
Connections G 1/4’ internal

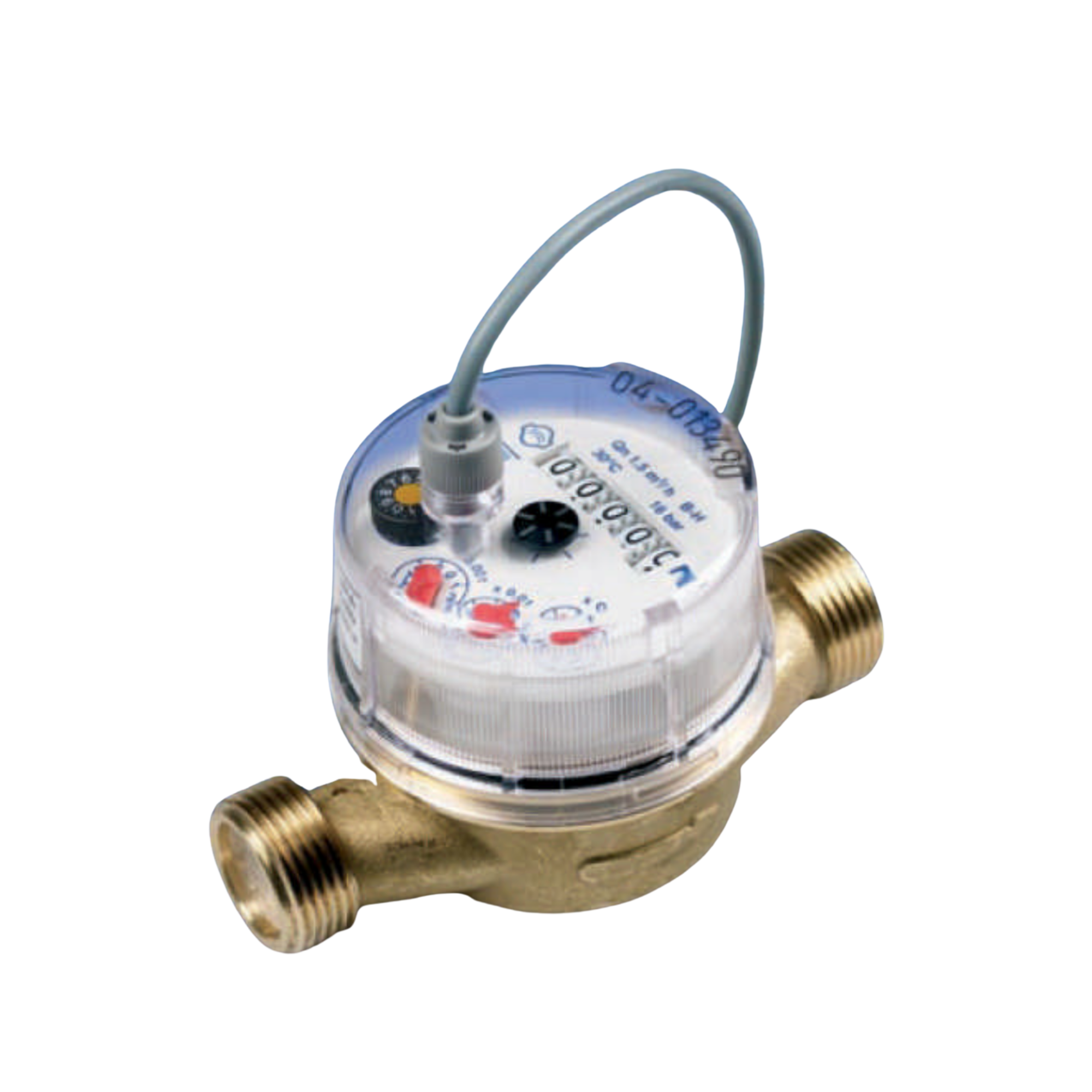

Water meter

The meters wich we offer have high precision and sensitivity according to CEE standard requirements. Their plastic
and metallic parts, in particular those in contact with water, comply with current regulations and are subject to
extensive checks and controls.
